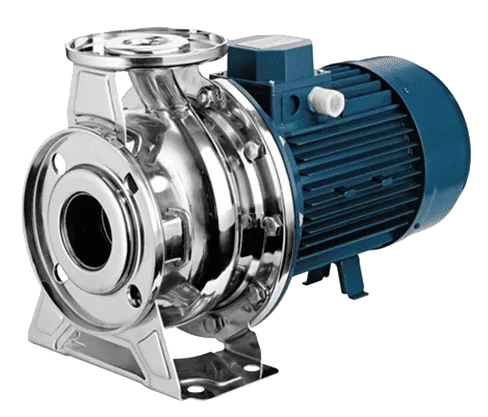

Serie 3M-3LM
Bombas Centrífugas normalizadas (DIN 24255), fabricadas por Ebara, construidas completamente en acero inoxidable AISI 304 en serie 3M, y acero inoxidable AISI 316L en serie 3LM. Aplicaciones en usos industriales, para todo líquido compatible con acero inoxidable AISI 304 (serie 3M) y con acero inoxidable AISI 316 (serie 3LM), tambien incluye sistemas de presión, agua caliente, aire acondicionado, sistemas de lavado, tratamientos de agua, industria alimenticia, industria del vino.
ESPECIFICACIONES DE USO
- Máxima presión de trabajo: 10 bar
- Máxima temperatura del líquido:
Serie 3M: desde -20°C hasta +90°C
Serie 3LM: desde -20°C hasta +110°C
CARACTERISTICAS DE CONSTRUCCION SERIE 3M
- Cuerpo de la bomba, tapa del cuerpo, impulsor, soporte y eje en acero inoxidable AISI 304
- Sello mecánico en carbón/cerámica/NBR
CARACTERISTICAS DE CONSTRUCCION SERIE 3LM
- Cuerpo de la bomba, tapa del cuerpo, impulsor, soporte y eje en acero inoxidable AISI 316L
- Sello mecánico en SiC/SiC y elastómero en Vitón
.................................................................................
BUSQUE SU PUNTO DE OPERACIÓN
| TRIFáSICO - 380V | HP | KW | CAUDAL I/min | 100 | 150 | 200 | 300 | 333 | 360 | 400 | 450 | 500 | 600 | 700 | 800 | 1000 | 1200 | COTIZAR |
| m3/h | 6 | 9 | 12 | 18 | 20 | 22 | 24 | 27 | 30 | 36 | 42 | 48 | 60 | 72 | ||||
| 32-160/1.5 | 2 | 1,5 | H(m) | 28,0 | 26,5 | 24,5 | 19,2 | 17,0 | - | - | - | - | - | - | - | - | - | |
| 32-160/2.2 | 3 | 2,2 | 35,5 | 34,0 | 32,0 | 27,0 | 25,0 | - | - | - | - | - | - | - | - | - | ||
| 32-200/3.0 | 4 | 3 | 42,0 | 40,0 | 37,5 | 31,0 | 28,0 | - | - | - | - | - | - | - | - | - | ||
| 32-200/4.0 | 5,5 | 4 | 53,5 | 52,0 | 49,5 | 43,5 | 40,5 | 38,0 | - | - | - | - | - | - | - | - | ||
| 32-200/5.5 | 7,5 | 5,5 | 69,0 | 67,5 | 65,0 | 58,5 | - | - | - | - | - | - | - | - | - | - | ||
| 32-200/7.5 | 10 | 7,5 | 69,0 | 67,5 | 65,0 | 58,5 | 55,5 | 53,0 | 49,0 | 44,0 | - | - | - | - | - | - | ||
| 40-125/2.2 | 3 | 2,2 | - | - | 25,5 | 24,0 | 23,5 | 23,0 | 22,0 | 21,0 | 19,5 | 16,4 | 13,0 | - | - | - | ||
| 40-160/3.0 | 4 | 3 | - | - | 29,5 | 27,5 | 27,0 | 26,5 | 25,5 | 24,0 | 22,5 | 20,0 | 17,0 | - | - | - | ||
| 40-160/4.0 | 5,5 | 4 | - | - | 38,5 | 37,0 | 36,0 | 35,5 | 34,5 | 33,0 | 32,0 | 29,0 | 25,5 | - | - | - | ||
| 40-200/5.5 | 7,5 | 5,5 | - | - | 45,5 | 44,0 | 43,0 | 42,5 | 41,0 | 39,5 | 38,0 | 35,0 | 31,0 | - | - | - | ||
| 40-200/7.5 | 10 | 7,5 | - | - | 57,0 | 55,5 | 55,0 | 54,5 | 53,5 | 52,5 | 51,0 | 47,5 | 44,0 | - | - | - | ||
| 40-200/11 | 15 | 11 | - | - | 71,0 | 70,0 | 70,0 | 69,5 | 68,5 | 67,5 | 66,0 | 63,0 | 59,0 | - | - | - | ||
| 50-125/3.0 | 4 | 3 | - | - | - | - | - | - | 20,5 | 20,0 | 19,6 | 18,4 | 17,0 | 15,4 | 11,8 | 8,0 | ||
| 50-125/4.0 | 5,5 | 4 | - | - | - | - | - | - | 26,0 | 25,5 | 25,0 | 24,0 | 22,5 | 21,5 | 17,9 | 14,0 | ||
| 50-160/5.5 | 7,5 | 5,5 | - | - | - | - | - | - | 31,0 | 30,5 | 30,0 | 28,5 | 27,0 | 25,5 | 22,0 | 18,0 | ||
| 50-160/7.5 | 10 | 7,5 | - | - | - | - | - | - | 38,5 | 38,0 | 37,5 | 36,0 | 35,0 | 33,5 | 30,0 | 26,0 | ||
| 50-200/11 | 15 | 11 | - | - | - | - | - | - | - | - | 56,0 | 55,0 | 54,0 | 52,0 | 48,0 | 42,0 | ||
| 50-200/15 | 20 | 15 | - | - | - | - | - | - | - | - | 70,0 | 69,0 | 68,0 | 66,0 | 62,0 | 57,0 |
| TRIFáSICO - 380V | HP | KW | CAUDAL I/min | 700 | 900 | 1300 | 1500 | 1700 | 1900 | 2100 | 2200 | 2300 | 2400 | 2500 | 3000 | 3400 | 3600 | 3800 | 4000 | COTIZAR |
| m3/h | 42 | 54 | 78 | 90 | 102 | 114 | 126 | 132 | 138 | 144 | 150 | 180 | 204 | 216 | 228 | 240 | ||||
| 65-125/4.0 | 5,5 | 4 | H(m) | 19,0 | 17,3 | 13,3 | 11,0 | 8,6 | 6,3 | - | - | - | - | - | - | - | - | - | - | |
| 65-125/5.5 | 7,5 | 5,5 | 24,0 | 22,2 | 18,0 | 15,7 | 13,3 | 10,8 | 8,0 | - | - | - | - | - | - | - | - | - | ||
| 65-125/7.5 | 10 | 7,5 | 29,5 | 27,8 | 23,5 | 21,1 | 18,7 | 16,1 | 13,4 | 12,0 | - | - | - | - | - | - | - | - | ||
| 65-160/11 | 15 | 11 | 38,5 | 37,1 | 33,1 | 30,9 | 28,4 | 25,8 | 23,0 | 21,5 | 20,0 | - | - | - | - | - | - | - | ||
| 80-160/11 | 15 | 11 | - | - | 27,3 | 26,4 | 25,4 | 24,2 | 23,0 | 22,4 | 21,8 | 21,1 | 20,4 | 16,4 | 12,5 | - | - | - | ||
| 80-160/15 | 20 | 15 | - | - | 34,0 | 33,3 | 32,5 | 31,5 | 30,5 | 30,0 | 29,4 | 28,8 | 28,1 | 24,4 | 21,0 | 19,1 | 17,0 | - | ||
| 80-160/18.5 | 25 | 18,5 | - | - | 39,0 | 38,4 | 37,6 | 36,7 | 35,7 | 35,3 | 34,7 | 34,1 | 33,5 | 30,0 | 26,4 | 24,4 | 22,3 | 20,0 |
